GitOps Certified Associate (CGOA)

Table of Contents

INTRODUCTION

Managing infrastructure and applications using Git as the single source of truth for declarative configuration, with automated reconciliation.

  • Continuous: Like a thermostat of a room
  • Declarative: Not imperative commands. It is what you want
  • Desire State: Master plan, ultimate goal that GitOps aims for. Gives you consistency
  • State Drift: Undesirable situation
  • State Reconciliation: Detecting state drift and getting it back to the desire state
  • GitOps Managed Software System: Git repository is the single source of truth.
  • State Store: Git. Team can collaborate
  • Feedback Loop: Observing the actual state.
  • Rollback: Undo changes made to the configuration: git revert xxxx or using Argo CD

GITOPS PRINCIPLES

GitOps can be considered an extension of IaC that uses Gitas the version control system

  • Declarative
  • Versioned and Immutable
  • Pulled automatically: Continuously pulls
  • Continuously reconciled: Always matches the desired state

ArgoCD Basics

It is a declarative, GitOpscontinuous delivery tool for Kubernetes resources defined in a Git repository.

It uses Git repositories as the source of truth for the desired state of app and the target deployment environments

ArgoCD Concepts and Terminology:

  • Application
  • Application source type
  • Project
  • Target state
  • Live state
  • Sync status
  • Sync
  • Sync operation status
  • Refresh
  • Health

ARGOCD APP

Create an App

argocd app create color-app \
--repo https://github.com/sid/app-1.git \
--path team-a/color-app \
--dest-namespace color \
--dest-server https://kubernetes.default.svc

Automatically deploys de manifest

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: color-app
  namespace: argocd
spec:
  project: default
  source:
    repoURL: 'https://github.com/sid/app-1.git'
    targetRevision: HEAD
    path: team-a/color
  destination:
    server: 'https://kubernetes.default.svc'
    namespace: color
  syncPolicy:
    automated:
      selfHeal: true
    syncOptions:
      - CreateNamespace=true
  • Source: Desired state
  • Destination: Place where it needs to be deployed

ArgoCD Demo

Official Getting Starteddocumentation. And the git repository if you want an older version: HERE ArgoCD CLI installation HERE

kubectl create namespace argocd
kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/v3.0.5/manifests/install.yaml

To see the ArgoCD resources

kubectl -n argocd get all

The UI is on service/argocd-server

kubectl -n argocd edit srv argocd-server

And change type: ClusterIP to type: NodePort So we are able to access the UI.

The initial password is on secrets

kubectl -n argocd get secrets
kubectl -n argocd get secrets argocd-initial-admin-secret -o json
# To filter
kubectl -n argocd get secrets argocd-initial-admin-secret -o json | jq .data.password -r | base64 -d
#Output: xxxxxxxxxxx

IMPLEMENTING APPLICATION

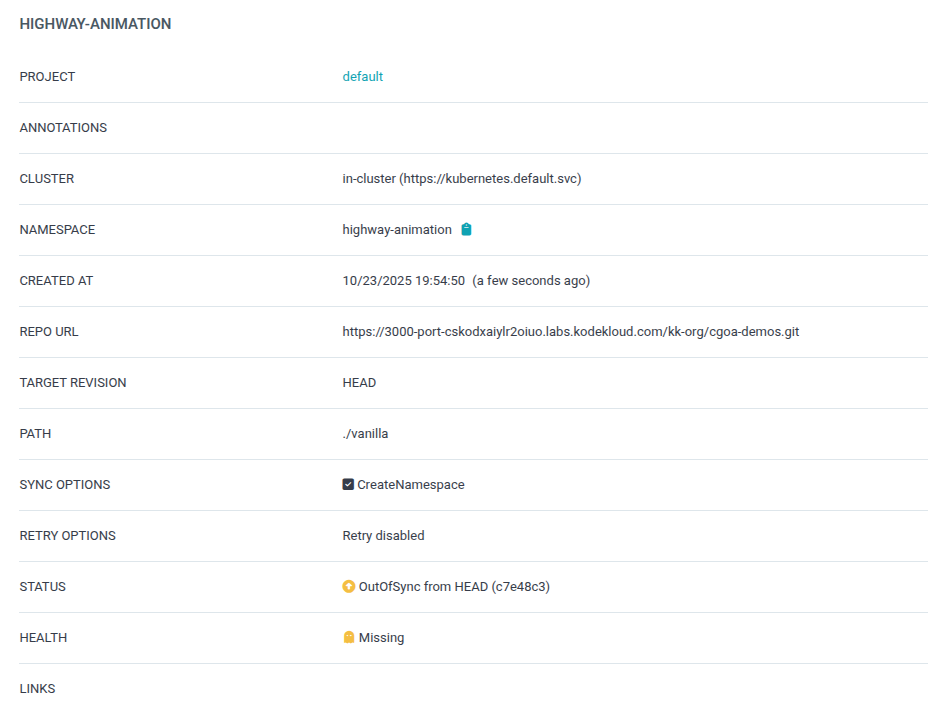

Create New Application in ArgoCD

  • Sync: When sync we need to make sure the Auto-Create Namespace is enabled
  • When we sync the code on the repo will be deployed into Kubernetes
kubectl get namespaces
NAME                STATUS   AGE
argocd              Active   15m
default             Active   10h
highway-animation   Active   104s # <--- Created
kube-flannel        Active   10h
kube-node-lease     Active   10h
kube-public         Active   10h
kube-system         Active   10h

  • If we manual change something with kubectl commands, the status on argoCD will be OutOfSync

  • If we sync again. We will go back to what the repository says

  • We also can have auto-sync (automatically reconcile whenever there is drift)

  • If we change the repo and since we’ve applied auto-sync we will see the changes on the kubernetes

GITOPS PATTERNS

GitOps Reconciler Types: In-Cluster Vs External

Ib-Cluster: Enhanced security and simplicity. Do not expose secrets. External: Outside the cluster

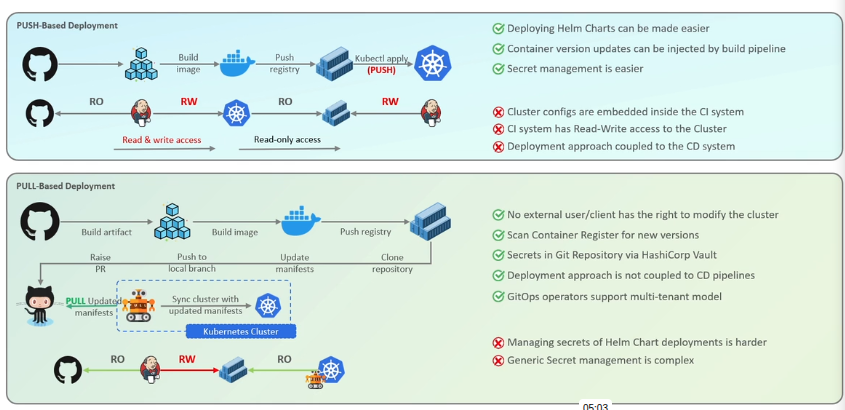

Push Vs Pull Based Deployment

ConfigMap: ArgoCD Pull Based Reconciler

We can edit the configmap of ArgoCD with the command: kubectl -n argocd edit configmap argocd-cm and add:

apiVersion: v1
data:
  timeout.reconciliation: 10s # <-------- This line
  [...]

But also a restart is needed: kubectl rollout restart sts argocd-application-controller -n argocd

ArgoCD Event Driven Reconciler (Webhook)

Base on this Documentation For the purpose of this lecture, we will use insecure mode: kubectl edit configmap argocd-cmd-params-cm -n argocd

And add a line

[...]
data:
  server.insecure: "true"

and restart kubectl -n argocd rollout restart deployment argocd-server

After that the webhook needs to be configured on the UI of the Github. With that we can have automatic sync with any push.
