GCP Cloud Digital Leader

Table of Contents

INTRODUCTION

Benefit

  • Infrastructure and application modernization in cloud
  • Innovating with data in google Cloud
  • Understanding google cloud security and operations to maintain the existing standards

GCP Global Infrastructure

  • Regions and Zones
  • Can be picked by using the Google Region Picker Tool considering carbon footprint, price and latency. See here

ACCOUNT

Hierarchy

  • Organization - Company
  • Folders - Departments, teams, productos
  • Projects - Dev Project, Test Project, Prod Project
  • Resources - Compute Engine Instances, App Engine Services, Cloud Storage Buckets

Billing

  • GCP allows us to see granular details of our GCP usage
  • Billing alert

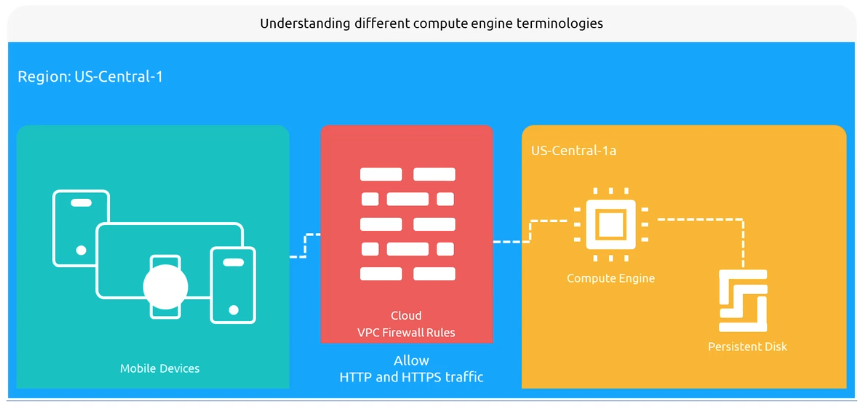

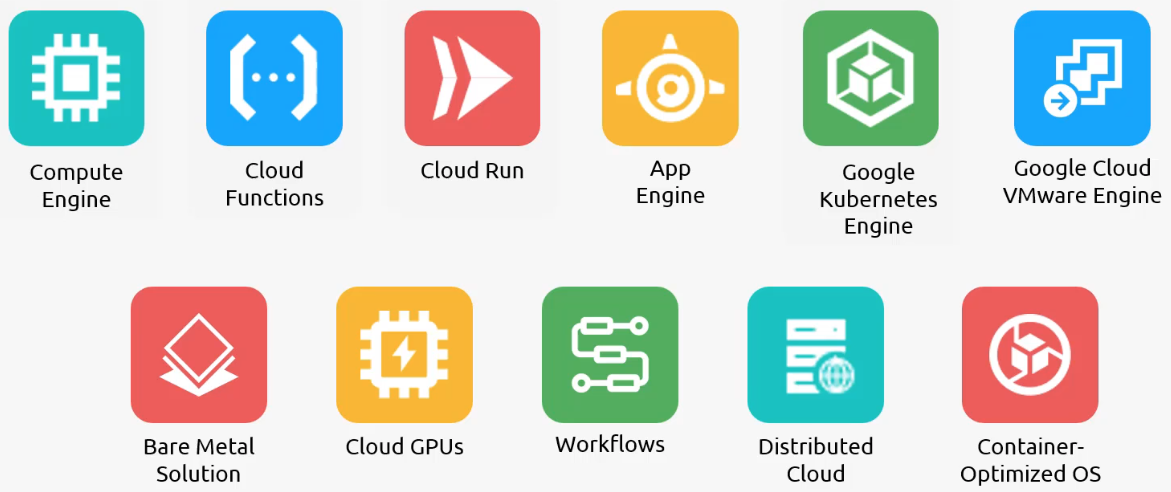

GCP COMPUTE

  • Compute Engine: VM Instances, Instance templates, Machine images.
  • Persistent Disk: Network storage devices
  • VPC Firewall Rules: Allow or deny connections to or from your virtual machine.

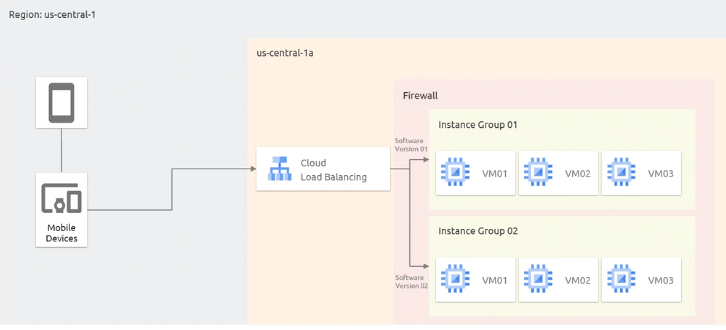

Scaling Compute with Instance Group and Load Balancers

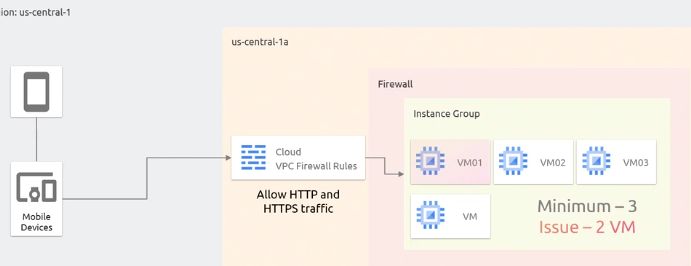

Instance Group

Is a collection of virtual machine instances.

  • Managed Instance Group (MIGs): It let you operate apps on multiple idetical VMs (Auto scaling, auto healing, auto updating).
  • Un-managed Instance Groups: It let you load balance across a fleet of VMs that you manage yourself.

Desirable:

  • High availability
  • Scalability
  • Automated updates

Create an Instance Group

Compute Engine - Instance Group - Instance Templates

Load Balancers

Health Checks Check our instance groups

HTTPS Load Balancers (Layer 7)

  • Front-End configuration
  • Back-End configuration (Here we set the instances group)
  • Routing rules

DATABASES

Support good data access. Multiple users can read and modify the data at the same time Databases are searchable and sortable. Can be used to get business insights

  • Why GCP Database:

    • Licenses and maintenance
    • Scalability, Disaster recover

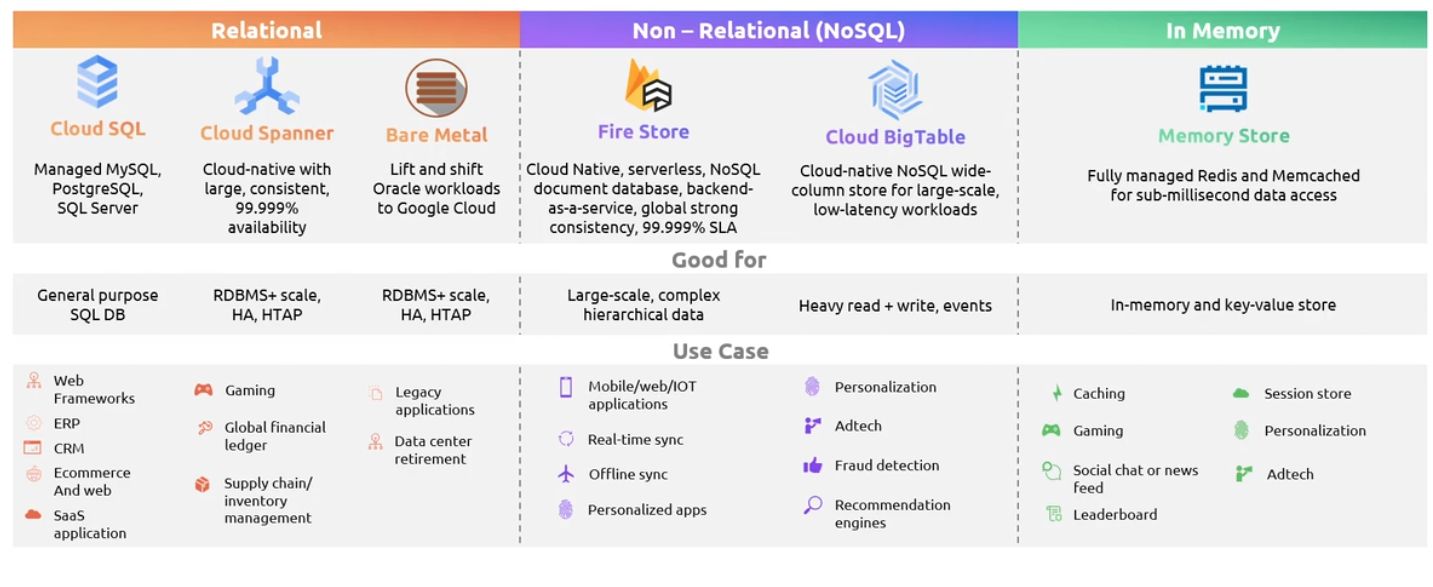

  • Types:

    • Cloud SQL: MySQL, PostgreSQL, SQL Server
    • Cloud Spanner: High capacity. Oracle or DynamoDB
    • Alloy DB for PostgreSQL
    • Cloud Bigtable: NoSQL database

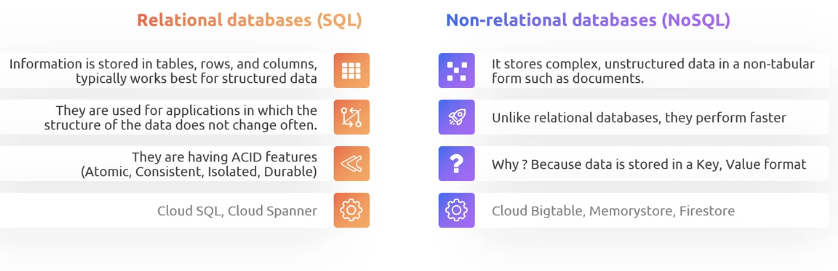

  • SQL and NoSQL:

  • Connect to Database Using CLoud Shell: gcloud sql connect main-db --user=root --quiet
  • Need to enable API

OBJECT STORAGE

Computer data storage architecture designed to handle large amounts of unstructured data. Storage pool (Google Drive)

  • Cloud Storage is the object storage option in GCP
  • Any kind of data
  • Turbo Replication: Replicate 100% of your data between regions in 15 mins or less
  • Durability 99.999999999%

Use case:

  • Rich media storage and delivery
  • Big data analytics
  • IoT
  • Backup and archiving

Create bucket:

  • Globally unique
  • Enforce public access prevention (default)

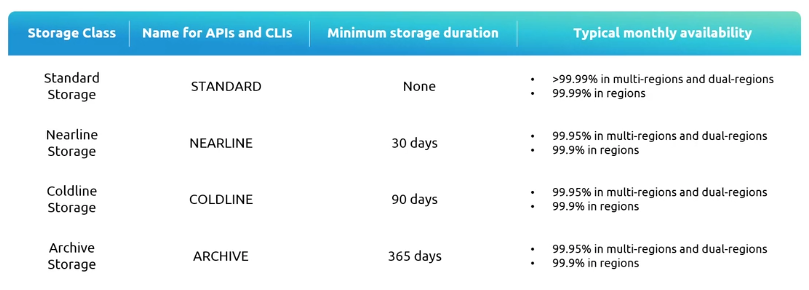

Different Storage Classes:

BUILDING APIs

  • API: GET, PUT, POST

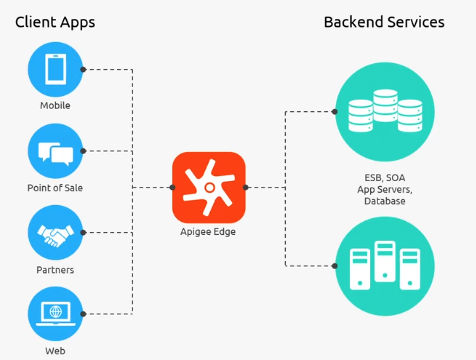

Apigee in GCP

  • With Apigee hybrid you have the power to choose where to host your APIs. (On-premises, Google Cloud or Hybrid)
  • AI-powered API monitoring
  • Expand and move to micro service architecture
  • Developer-friendly tools to build and deploy APIs

GOOGLE CLOUD SOLUTION FOR MACHINE LEARNING AND AI

4Vs of Big Data:

  • Volume: Amount of data
  • Velocity: Speed new data
  • Variety: Unstructured, semi-structured and structured
  • Veracity: Trustworthiness of data. Accurate and high-quality

4 Steps of Handling Big Data in GCP

  • Collection of Data
  • Processing the Data
  • Analytics on Data
  • AI and Machine Learning

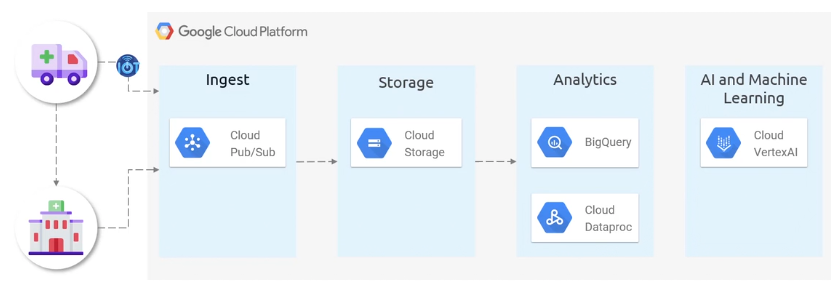

Use Case for Big Data:

  • Ingest:
    • Cloud Pub/sub: Stream data in real-time. Ingest events for streaming into Big Query, data lakes or operational databases.
  • Storage:
    • Cloud Storage (Object Storage) Can act as a Data warehouse. Connect further to Big Query, DataProc
  • Analytics:
    • BigQuery: Big Data feature. Can read the data directly from Cloud Storage
    • Cloud Dataproc: Can process and clean the Data. Fully managed and highly scalable service for running Apache Spark. Used for data lake modernization
  • AI and Machine Learning:
    • Cloud VertexAI: Build and run AI models. Use GPU instance for Deep learning machine learning models. End to End machine learning model deployment. Options to use Tensorflow, Scikit ML Libraries

Pup/Sub

  • Topic: Ingest data. Temporal storage for the streamed information
  • Subscription: Reads from Topic and extract the required information
  • Data retention: 7 Days (default)

BigQuery

  • Create DataSet: Collection of things
  • IS able to understand the Squema of a CSV file and creates a SQUEMA/TABLE on the Google Cloud UI.
  • Charged for the data scanned.
  • BIEngine: Reduce BigQuery cost. Since certain tables will be queried a lot, BIEngine catches certain tables. SO whe someone queries that same table, it will be queried from BIEngine

CONTAINER ORCHESTRATION

Why containers are required:

  • Streamlines the development life cycle by allowing developers to work in standardized environment
  • Shipping code to clients is easy

Virtualization:

  • Docker
  • Container - Image

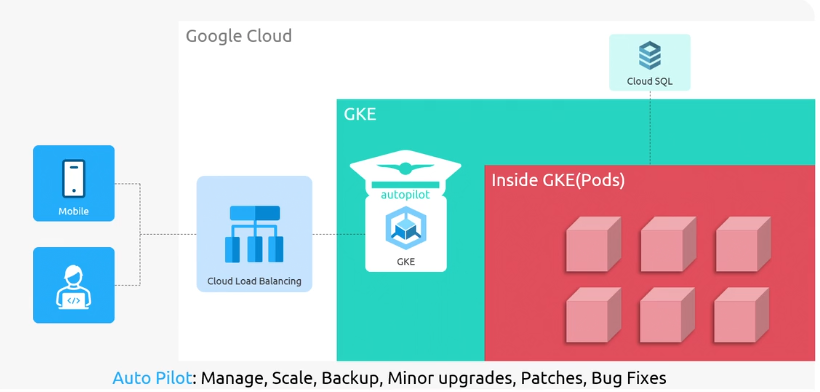

Google Kubernetes Service (GKE)

Open-source container orchestration system

  • Automating
  • Software deployment
  • Scaling
  • Management
  • Easy integration with Load Balancers and other services to expose our application APIs

Modes:

  • Autopilot
  • Standard: You want to control the behavior

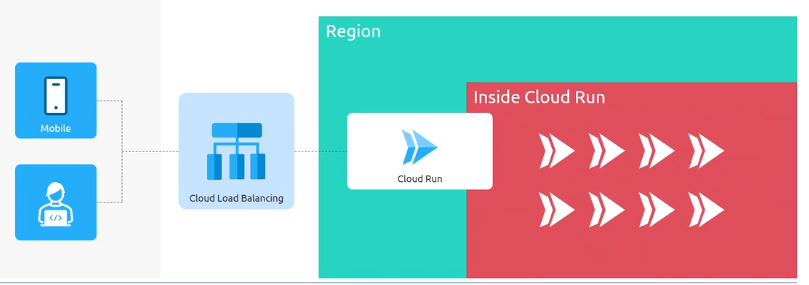

CloudRun

We only have a container image. We want to quickly test this without going to the GKE setup.

  • Serverless
  • Languages: Go, Python, Java, Node.js, .NET and Ruby
  • Pay per use
  • Only pay when your code is running.
  • Cloud Run integrations - Load balancing, logging
  • Scalable solution to be chose to test and deploy a simple containerized application.
  • Concurrency: Each cloud-run container can receive default 80 requests at the same time. You can increase this to a maximum of 1000

SECURITY IN GCP

  • Detect, investigate and respond to threats faster

  • Protect business-critical apps from fraud and web attacks

  • Digital sovereignty

  • Provide secure access to systems, data and resources

  • Data Replication: Data replication and Disaster recovery

  • Singe Sign On: Integrate with the existing single sign-on system (Multi factor authentication)

  • IAM: Use IAM to provide the least required access

  • Cloud Armor: Enable Cloud Armor protection

  • Thread Detection: Setup rules to alert on mis-configuration

Shared Respectability Model

  • Security Of the Cloud
    • Physical security of Data centers
    • Global network
    • Cyber Security of data centers
    • Upgrade and patch accordingly
  • Security inside the Cloud
    • Data security inside the cloud
    • App configuration according to best practice
    • Taking proactive measures in solving security threats

GCP ARCHITECTURE

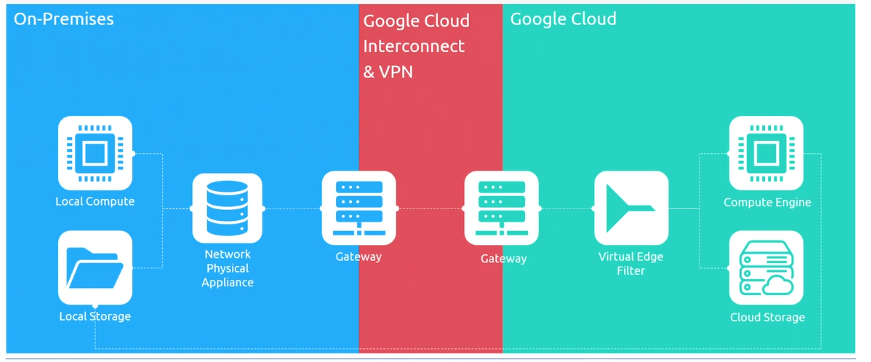

Connection On-Premises to GCP

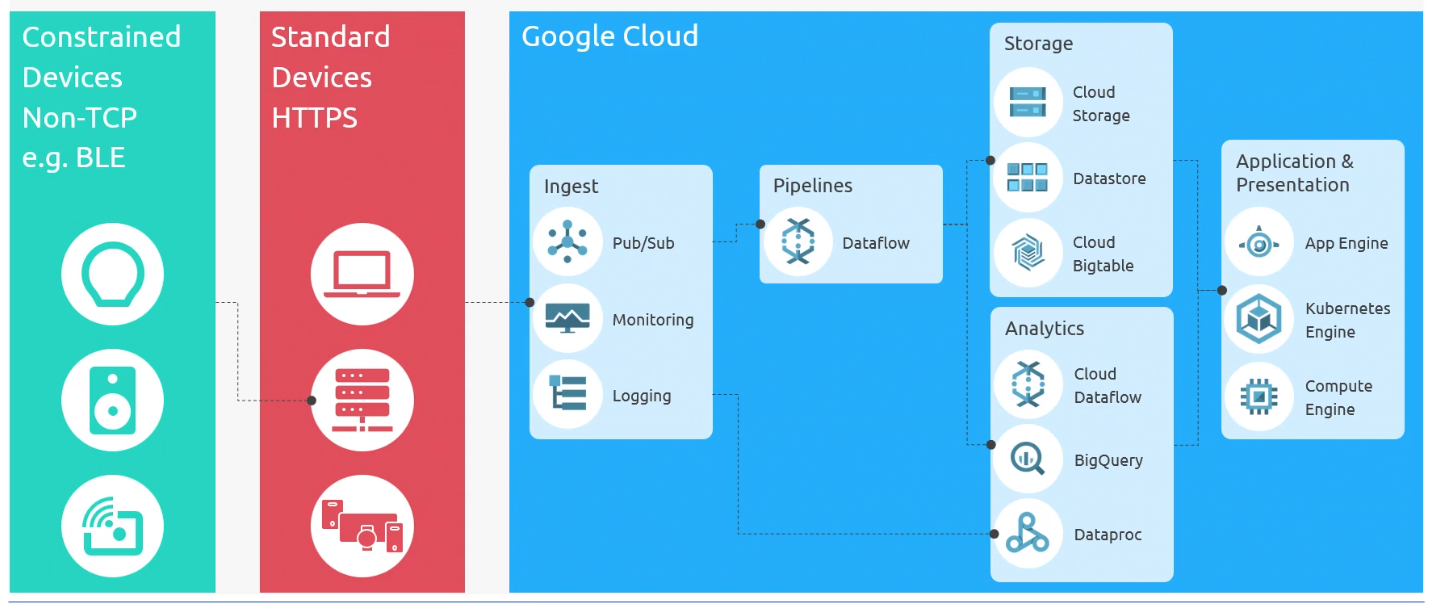

Internet of Things - Sensor Stream ingest and Processing

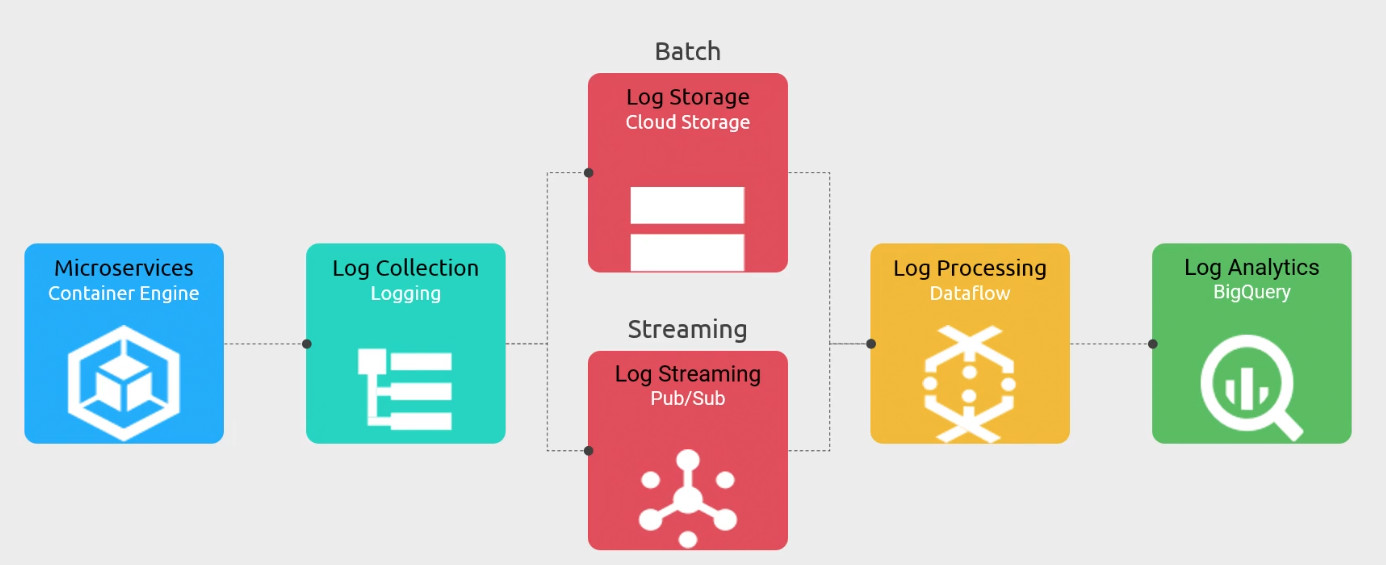

Big Data - Log Processing

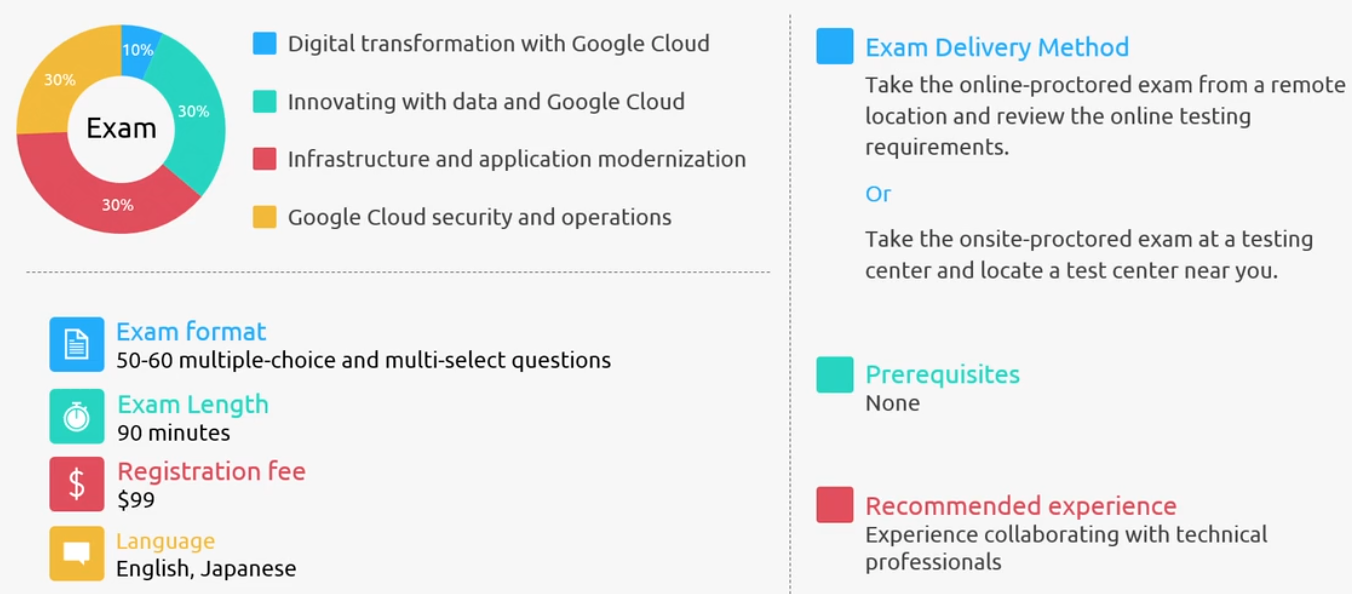

CERTIFICATION EXAM
